Other Packaging Corrugated Cardboard Thin Blade Slitter Scorer Machine with 380V

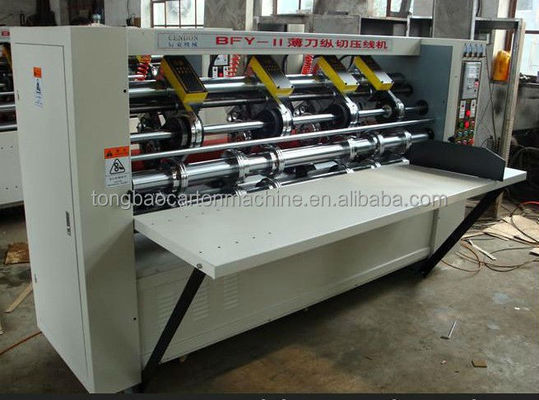

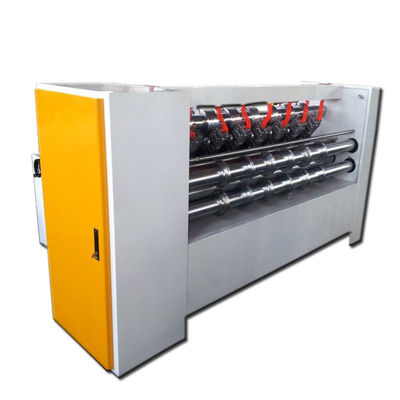

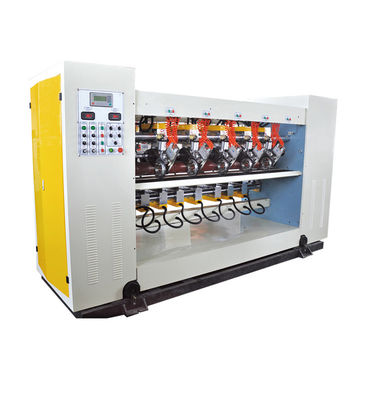

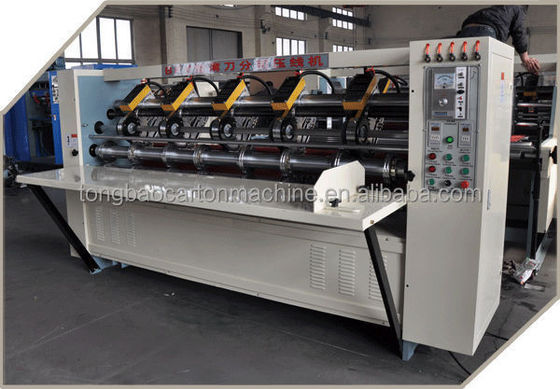

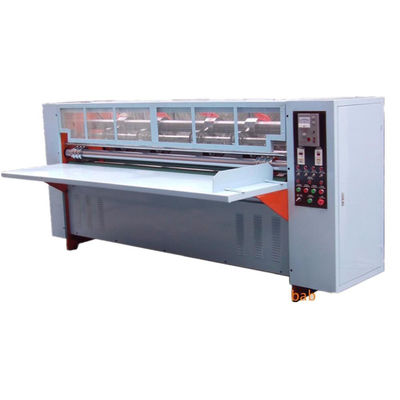

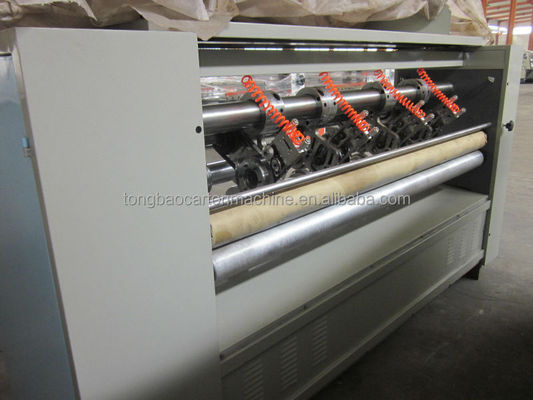

^{Corrugated Cardboard Thin Blade Slitter Scorer Machine}

Thin blade slitter scorer carton machine function an characteristics:

1.Electrical adjustment of the knife distance,pneumatic lock and keep it steady

2.The thin blade cut the paperboard,and through the grinding wheel grinding and the knife become sharp,

then the edge of the paperboard will be neat.
3.First step creasing then cut the paperboard.
4.For the knife grinding it can be operated by manual or electric,can chose the time for knife grinding or stop grinding,can keep the cut  result neat.
5.Single knife independent lift structure,can change according to the paperboard quantity
6.The width for creasing can be adjusted by manual.

Thin blade slitter scorer carton machine Main parameter:
The width of the paperboard:1800mm
The max speed: 100 pieces/min
The slitter knife: 5 pieces(Can add more or less according to the requirements)

The creasing wheel: 8 pairs (Can add more or less according to the requirements)
The min slitter width of the paperboard:140 mm
The min creasing with of the paperboard 30 mm
The outside diameter for the slitter knife:200 mm
The thickness of the slitter knife:1.3mm (alloy)
The power of the main motor: 4.0 kw
The pneumatic pressure <0.4mpa

Dimensions 3200×1600×1500mm
Total weight:1400 kg

Q1: Are you a factory or trading company?

A1: Our company is a professional enterprise to invent and produce the carton machinery with more than 15 years product experience.

Q2: How can I find the most suitable machine?

A2: You can contact us, and we can put our heads together.

Q3: Can I visit your factory?

A3: Yes, of course. When you arrive in China, we will go and pick you up.

Q4: How can I operate the machine?

A4: Either our machine is a high degree of automatic or easy operate, you will be able to operate after training.

Q5: How long is the warranty period?

A5: 1 year warranty.
