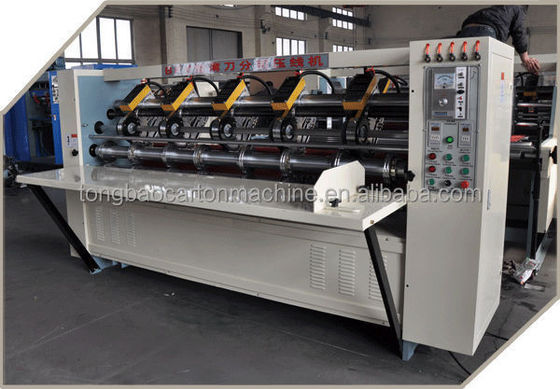

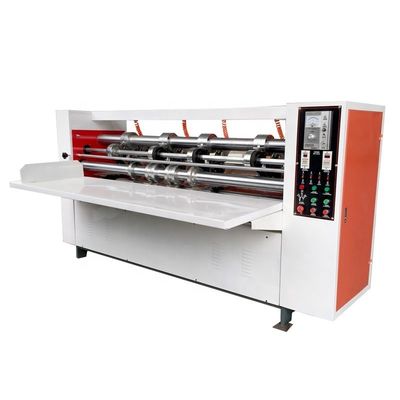

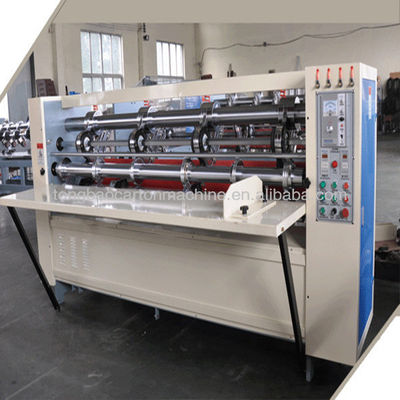

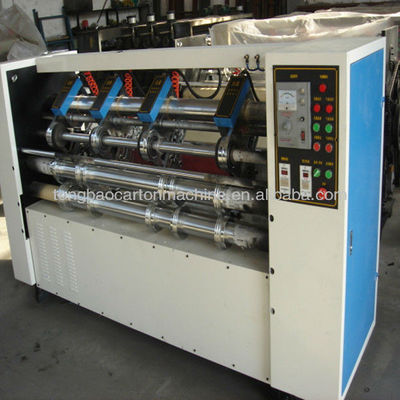

Semi Automatic Thin Blade Slitter for Corrugated Cardboard Driven Type Electric 380V

Semi Automatic Thin Blade Slitter for Corrugated Cardboard Driven Type Electric 380V
Semi Automatic Thin Blade Slitter for Corrugated Cardboard Driven Type Electric 380V Semi Automatic Thin Blade Slitter for Corrugated Cardboard Driven Type Electric 380V Semi Automatic Thin Blade Slitter for Corrugated Cardboard Driven Type Electric 380V Semi Automatic Thin Blade Slitter for Corrugated Cardboard Driven Type Electric 380V Semi Automatic Thin Blade Slitter for Corrugated Cardboard Driven Type Electric 380V Semi Automatic Thin Blade Slitter for Corrugated Cardboard Driven Type Electric 380V

Large Image :  Semi Automatic Thin Blade Slitter for Corrugated Cardboard Driven Type Electric 380V

Product Details:
Place of Origin: Hebei, China
Brand Name: TB
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $1,000.00 - $2,000.00/sets
Packaging Details: Self-adhesive film packaging
Supply Ability: 20 Set/Sets per Month
Contact Now

Semi Automatic Thin Blade Slitter for Corrugated Cardboard Driven Type Electric 380V

Description
Warranty: 1 Year Type: Other
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Printing Shops, Advertising Company, Corrugated Paper, Packaging, Carton Pack, Carton Box Showroom Location: Egypt, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan,
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Warranty Of Core Components: 1 Year Core Components: PLC, Engine, Gear
Condition: New Application: Commodity, Machinery & Hardware, Corrugated Box
Packaging Type: Cartons Packaging Material: Plastic
Automatic Grade: Semi-automatic Driven Type: Electric, Electric
Voltage: 380V Power: 1.1kw
Weight: 1000 KG Dimension(L*W*H): 2625*1160*1190mm
Key Selling Points: High Safety Level After Warranty Service: Video Technical Support
Machine Name: Corrugated Paperboard Rotary Slitter Scorer Marketing Type: Hot Product 2019
Port: Tianjin Port, China



Paperboard Creasing Cutting Machinery/Corrugated Cardboard Slitter Scorer Machine



Product Description

FY Rotary Slitting and Scorer Machine

1. Used to produce single, double and multiple layer corrugated carton.


2. Cutting, slitting and creasing in one pass.


3. Compact structure and easy operation.



4. Cutting, slitting and creasing in one pass.



5. Compact structure and easy operation.

Parameters

Main Features And Functions

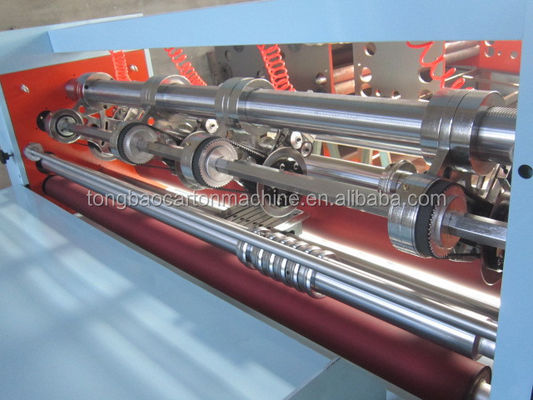

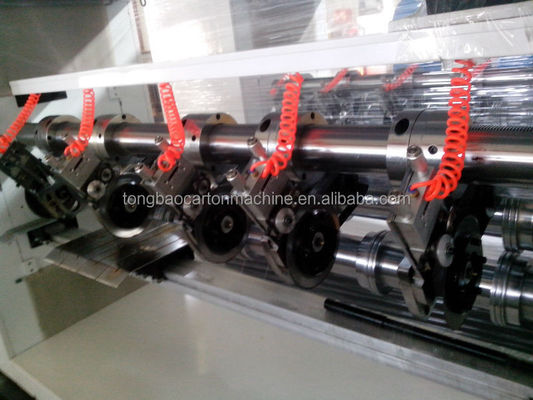

1.Slitting Part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
2.Scoring Part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton Sheet.
3.Grinding Part: adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working, improve work efficiency.
4.Electric control lift-down and correct error, easy to operate, suit for different requirements.
5.Adopt China famous brand or imported electric element, dependable performance.
6.Adopt synchronous belt drive, low noisy and work steady.
7.It could be adopts double machine type, easy and fast change cutting order.
8.Max running speed for production line:150m/min
9.with protect cover,make sure the workers safety

   Model
  2000
     2500
     3000
    3500
Width of paper board(mm)
2000
2500
3000
3500
Speed of paper dividing(m/S)
2
2
2
2
Driving power(kw)
1.1
1.5
2.2
2.2
Weight(kg)
1000
1400
2000
2500
Size of conflguration
2400*1100*1170
2900*1100*1170
3400*1100*1170
3400*1100*1170
Corporate Profile

Cangzhou Tongbao Carton Machinery CO., LTD is professional enterprise to invent, develop and produce the carton machinery in North of China. Adhering to scientific and technical innovation from beginning to the end and consistent introducing, consuming and absorbing the advanced technology at home and abroad for 23 years. Our products are well appraised by mass clients for many years by good quality, novel exterior appearance, durable, long time and lifelong following service.
