Product Details:
Place of Origin: Hebei, China
Brand Name: TB
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $1,500.00/sets >=1 sets
Packaging Details: Self-adhesive film packaging
Supply Ability: 20 Set/Sets per Month
Contact Now

Paperboard Creasing And Slitting Machine The Perfect Solution for Your Cardboard Needs

Description
Warranty: 1 Year Type: Other
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Printing Shops, Advertising Company Showroom Location: Egypt, India, Mexico
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Warranty Of Core Components: 1 Year Core Components: PLC, Motor
Condition: New Application: Commodity, Machinery & Hardware
Packaging Type: Cartons Packaging Material: Plastic
Automatic Grade: Semi-automatic Driven Type: Electric
Voltage: 380V Power: 1.1kw, 1.5kw, 1.1 1.5 2.2 Kw Available
Weight: 1000 KG Dimension(L*W*H): 2625*1160*1190mm
Key Selling Points: Easy To Operate After-sales Service Provided: Engineers Available To Service Machinery Overseas
Machine Type: Carton Packaging Machine Machine Function: Corrugated Board Slitter
Max.Paper Feeding Width: 200 2500 3000mm Available Speed Of Slitting: 120m/min
Customize Machine: Can Customize The Machine Color: As Require
Port: Tianjin Port, China



Hot Sale Paperboard Creasing And Slitting Machine/China New Cardboard Slitter Scorer Machine



Product Description

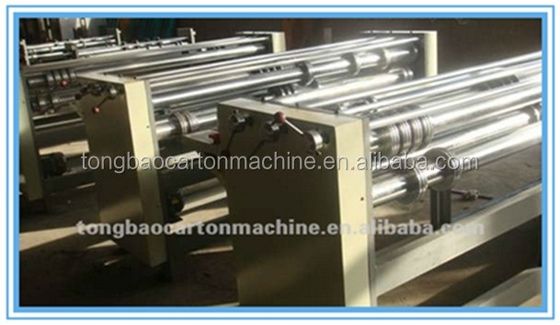

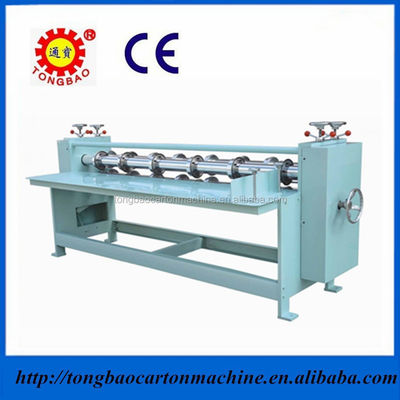

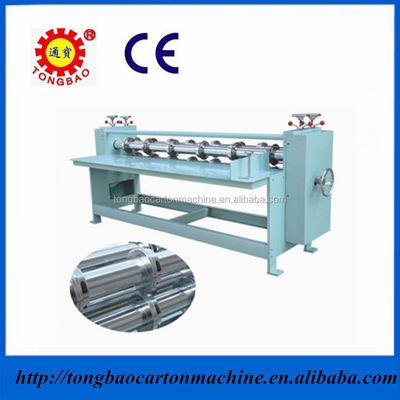

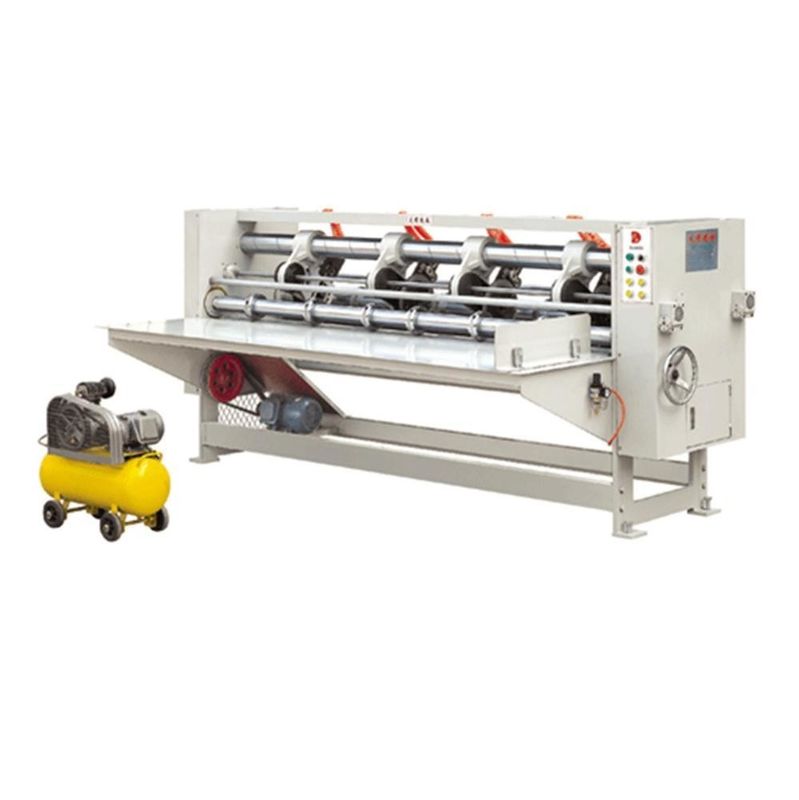

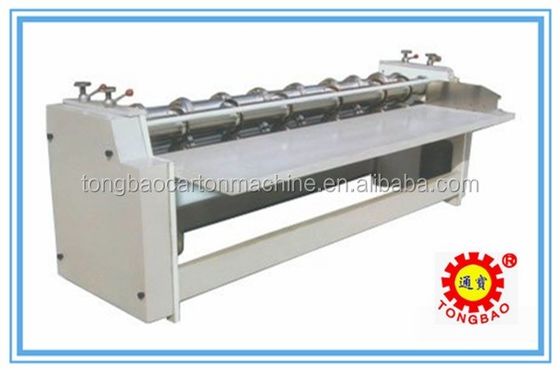

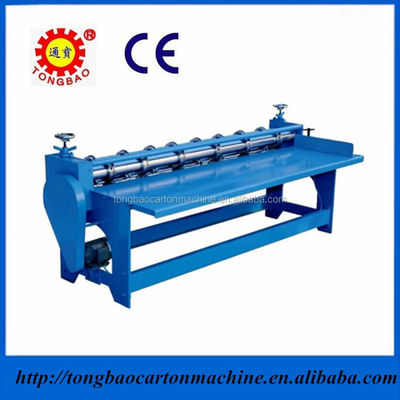

FY Rotary Slitting and Scorer Machine

1.  Used to produce single, double and multiple layer corrugated carton.


2.  Cutting, slitting and creasing in one pass.


3.  Compact structure and easy operation.



4. Cutting, slitting and creasing in one pass.



5. Compact structure and easy operation.

Parameters

 Specifications

Model

FY-2000

FY-2500

FY-3000

Max.Paper feeding width (mm)

2000

2500

3000

Speed of Slitting (m/second)

2

2

2

Power (Kw)

1.1

1.5

2.2

Weight (Kg)

1000

1400

2000

size of configuration(LxWxH) (mm)

2625×1160×1190

3045×1100×1170

3560×1275×1220
Main Image

 Paperboard Creasing And Slitting Machine The Perfect Solution for Your Cardboard Needs 0

Paperboard Creasing And Slitting Machine The Perfect Solution for Your Cardboard Needs 1Paperboard Creasing And Slitting Machine The Perfect Solution for Your Cardboard Needs 2
