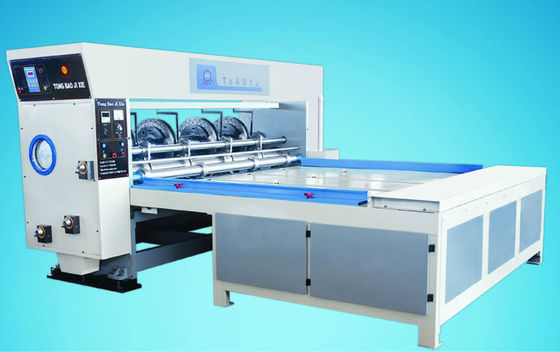

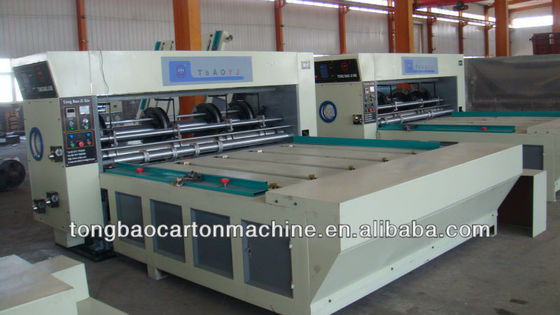

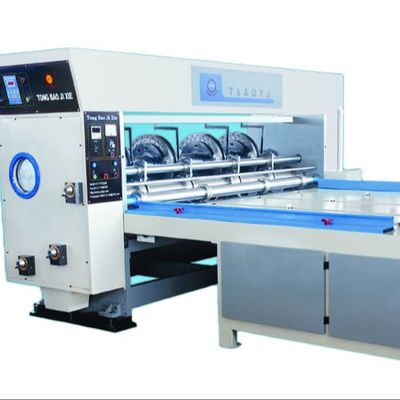

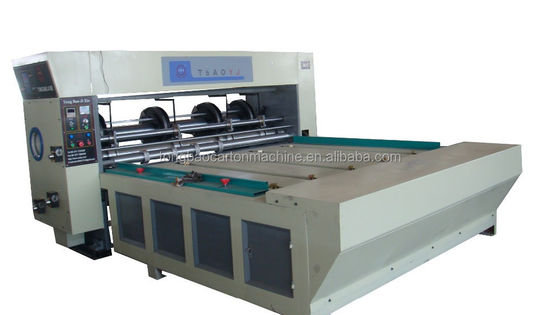

100 Pieces/min Corrugated Box Automatic Rotary Slotter Machine for Customized Needs

Large Image : 100 Pieces/min Corrugated Box Automatic Rotary Slotter Machine for Customized Needs

Product Details:

Brand Name:	TB

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$3,000.00/sets >=1 sets
Packaging Details:	Plastic film
Supply Ability:	10 Set/Sets per Month

Contact Now

100 Pieces/min Corrugated Box Automatic Rotary Slotter Machine for Customized Needs

Description

Condition:	New	Warranty:	1 Year
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Printing Shops, Construction Works , Food & Beverage Shops	Showroom Location:	Egypt
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product 2019	Warranty Of Core Components:	1 Year
Core Components:	PLC	Type:	Die Cutting Machine
Key Selling Points:	Easy To Operate	Weight (KG):	3000 KG
Max. Machine Speed:	120Pieces/min	Economic Machine Speed:	100Pieces/min
Max. Paperboard Size:	1450*2500mm	Min. Paperboard Size:	360*600mm
Effective Feeding Paper Thickness:	3-7mm	Slotting Width:	7mm
Main Motor Power:	7.5kw	Port:	Tianjin

Function and feature:

1. Adopt the chain paper-feeding way, stepless speed regulation control
An auto feeder can be attached.

2. Optional control counter, to plan and design the order and the production quantities in advance

3. Three groups for slotting, one group for angle cutting, two groups for partition paper, four groups for creasing

4. Mechanical(Type A) or Electrical(Type B) phase regulation, the scale will say it.

5. The height of slotting can add 4-knives linkage regulation

6. To adjust the axles and rollers. Hard chromium plating. Polishing treatment.

7. The worktable can regulate the clutch, convenient for checking the size.

Main technical parameter

Model	TB480-2200	TB480-2600	TB530-2200	TB530-2600
Wall diameter(mm)	2147	2547	2147	2547
Max.paper coverage area(mm)	2000x1450	2400x1450	2000x1600	2400x1600
Finish speed(pieces/min)	0-60	0-60	0-60	0-60
Power of main motor	1.5	1.5	1.5	1.5

Contact Details

Cangzhou Tongbao Carton Machinery Co.,Ltd.

Contact Person: Mr. Gao

Tel: 8615932744565
