Semi Auto Flat Bed Corrugated Paper Die Cutting Machine with Full Waste Stripping Supply

Semi Auto Flat Bed Corrugated Paper Die Cutting Machine with Full Waste Stripping Supply
Semi Auto Flat Bed Corrugated Paper Die Cutting Machine with Full Waste Stripping Supply Semi Auto Flat Bed Corrugated Paper Die Cutting Machine with Full Waste Stripping Supply Semi Auto Flat Bed Corrugated Paper Die Cutting Machine with Full Waste Stripping Supply Semi Auto Flat Bed Corrugated Paper Die Cutting Machine with Full Waste Stripping Supply Semi Auto Flat Bed Corrugated Paper Die Cutting Machine with Full Waste Stripping Supply Semi Auto Flat Bed Corrugated Paper Die Cutting Machine with Full Waste Stripping Supply

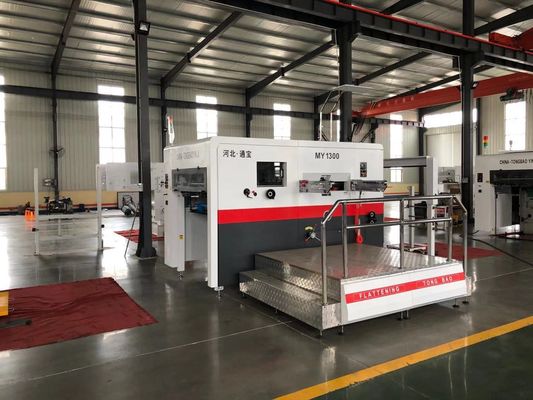

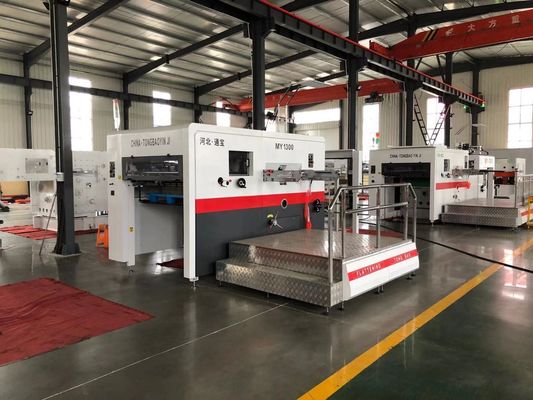

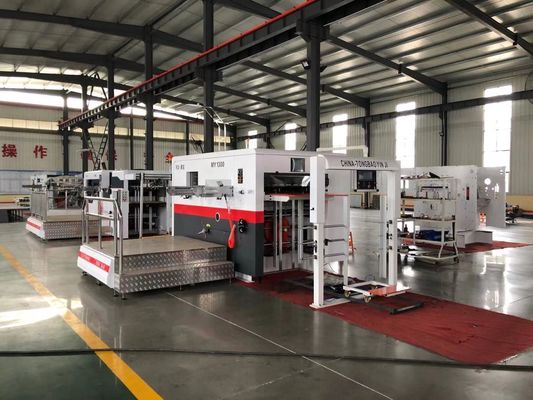

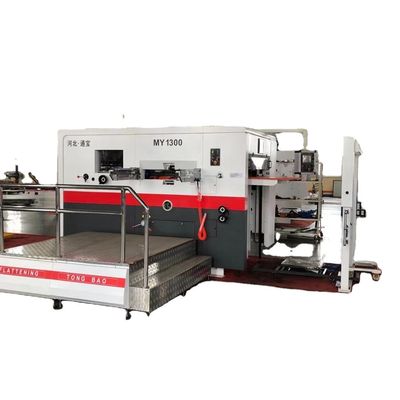

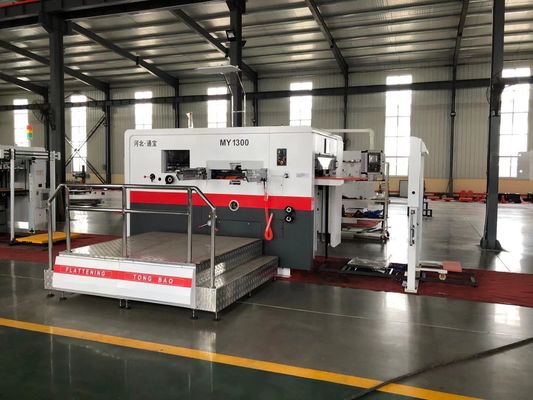

Large Image :  Semi Auto Flat Bed Corrugated Paper Die Cutting Machine with Full Waste Stripping Supply

Product Details:
Place of Origin: Hebei, China
Brand Name: TB
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $35,000.00/sets >=1 sets
Packaging Details: We use plastic film to wrap and put it in box
Supply Ability: 5 Set/Sets per Month
Contact Now

Semi Auto Flat Bed Corrugated Paper Die Cutting Machine with Full Waste Stripping Supply

Description
Applicable Industries: Food & Beverage Factory, Home Use, Food Shop, Printing Shops, Food & Beverage Shops, Other, Advertising Company, Carton Box, Corrugated Board, Packaging, Pack Showroom Location: Egypt, France, Mexico, Colombia, Ukraine, Nigeria, Tajikistan
Condition: New Product Type: Die Cutting Machine
Processing Type: Cutting Machine Voltage: 380V
Power: 14KW Dimension(L*W*H): 6500*2300*2300
Weight: 17000 Kg Warranty: 1 Year
Production Capacity: Other Machinery Test Report: Provided
Video Outgoing-inspection: Provided Marketing Type: Hot Product 2021
Warranty Of Core Components: 1 Year Core Components: PLC, Pressure Vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox
SIZE: 1300/1500/1650 SPEED: 5500PCS/H
Port: Tian Jin Port

Product Overview

TB-MY Series

* Manual feeding can better adapt to warping paper and convenience to feeding, easy put paper in place.
* The paper feeding table can be automatically raised with the paper, easy to operate.
* The size of the grippers can be adjusted up and down with the thickness of the paper and bite paper firmly.
* This machine adopts high strength rigid aluminum alloy gripper row , which is small and stable in its gripper edge,
effectively preventing the gripper row from vibrating. Adjustable device is added to the front and rear positioning of the
gripper row.

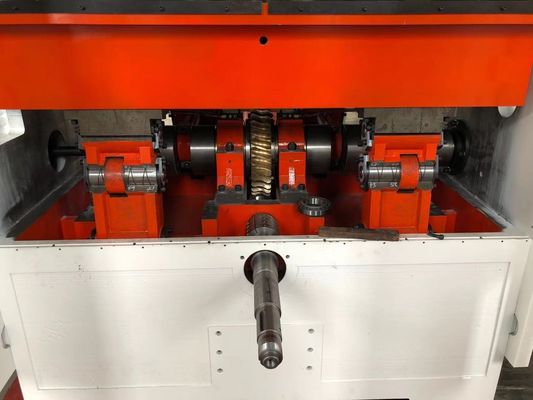

* The main drive adopts pneumatic clutch, frequency modulation motor, smooth and rapid braking.
* Die-cutting steel plate with high hardness and high elasticity of high manganese alloy spring steel material, durable.
PRODUCT SPECIFICATIONS
No
Type
MY-1300
MY-1500
MY-1650
1
Maximum paper size（mm）
1300 x 930
1500x1100
1650x1200
2
Minimum paper size（mm)
500 x450
550 x500
600x550
3
Maximum die cutting size（mm)
1280 x910
1480x1080
1630x1180
4
Maximum die cutting pressure(T)
350
350
350
5
Processable paper thickness (mm)
≤8
≤8
≤8
6
Steel plate thickness(mm)
7
7
7
7
Top speed(P/h)
5500
5500
5500
8
Rated power(Kw)
14
15
17
9
Total weight(T)
13
15
18
10
Overall dimensions
3700x2300x2300
4300x2450x2300
5000x2600x2300
SALES AND SERVICE NETWORK
Semi Auto Flat Bed Corrugated Paper Die Cutting Machine with Full Waste Stripping Supply 0
Successful Project
Semi Auto Flat Bed Corrugated Paper Die Cutting Machine with Full Waste Stripping Supply 1
Project in Thailand
Semi Auto Flat Bed Corrugated Paper Die Cutting Machine with Full Waste Stripping Supply 2
Project in India
Semi Auto Flat Bed Corrugated Paper Die Cutting Machine with Full Waste Stripping Supply 3
Project in Russia
