Home ProductsSingle Corrugated Paperboard Machine

Two Layer Single Facer Corrugated Production Line Solution for Cardboard Box Making

Certification
China Cangzhou Tongbao Carton Machinery Co.,Ltd. certification
I'm Online Chat Now

Two Layer Single Facer Corrugated Production Line Solution for Cardboard Box Making

Two Layer Single Facer Corrugated Production Line Solution for Cardboard Box Making
Two Layer Single Facer Corrugated Production Line Solution for Cardboard Box Making Two Layer Single Facer Corrugated Production Line Solution for Cardboard Box Making Two Layer Single Facer Corrugated Production Line Solution for Cardboard Box Making Two Layer Single Facer Corrugated Production Line Solution for Cardboard Box Making Two Layer Single Facer Corrugated Production Line Solution for Cardboard Box Making Two Layer Single Facer Corrugated Production Line Solution for Cardboard Box Making

Large Image :  Two Layer Single Facer Corrugated Production Line Solution for Cardboard Box Making

Product Details:
Place of Origin: Hebei, China
Brand Name: TONGBAO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $9,800.00 - $45,000.00/sets
Packaging Details: wrapped with plastic
Supply Ability: 15 Set/Sets per Month

Two Layer Single Facer Corrugated Production Line Solution for Cardboard Box Making

Description
Type: Packaging Line Applicable Industries: Printing Shops, Carton Plant, Carton Box, Packaging, Corrugated Plant
Showroom Location: Egypt, Indonesia, India, Thailand, Morocco, Kazakhstan, Ukraine, Uzbekistan, Tajikistan Condition: New
Application: APPAREL, Beverage, Commodity, Food Packaging Type: Cartons
Packaging Material: Plastic Automatic Grade: Automatic
Driven Type: Electric Voltage: 380V
Weight: 8000 KG Warranty: 1 Year
Key Selling Points: Easy To Operate Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Engine, Gearbox After-sales Service Provided: Engineers Available To Service Machinery Overseas
Usage: Making Carton Product Name: DWJ System Single Corrugating Cardboard Product Line
Keywords: Production Machine Function: Corrugated Paperboard
Machine Type: Automatic Packing Other Name: Automatic Production Machine Line
Item: Packing Machineline Port: Tianjin

Product Description
Two Layer Single Facer Corrugated Production Line Solution for Cardboard Box Making 0
Two Layer Single Facer Corrugated Production Line Solution for Cardboard Box Making 1

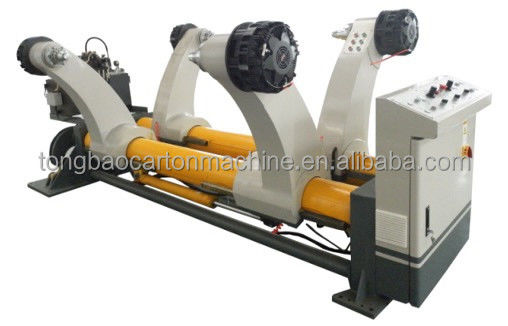

Purpose and Characteristics The structure is double rolls with four arms. Mill roll on both arms can be bearing at the same time. ●it can realize changing the rolls non-stop working. Reel paper clamp, lift-lower, loosen, centering, movement of left-right controlled by mechanical driving. Adopt A3 steel structure. Width: 1800mm. Maximum paper roll diameter: ∮1400mm Minimum reel paper: ∮400×800mm Maximum bearing of single side: 1500kg Matched with two tracks and two cars to feed mill paper for each stand. Manual brake set Electric components controlled intensively One motor, power 2.2kw, each arm power 1.5kw×4.
Two Layer Single Facer Corrugated Production Line Solution for Cardboard Box Making 2

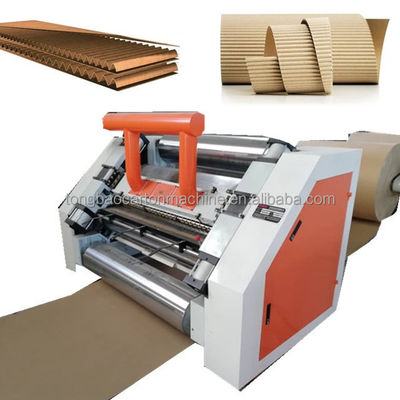

Structural Features: ● Adopt vacuum suction structure, with high pressure strong blower.Suction with silencer.Gas supply and electrical control cabinet to focus on the same operation cabinet, not less than 1.5 meters away from the host,Fully enclosed full operation side。 ● Base and wallboard cast iron wall,Wallboard thickness130mm。universal Joints. corrugated roller material adopt 48CrMoalloy steel,quenched、Laser hardening,Surface finish, main roll of corrugated diameter¢ 280mm, surface hardnessHRC60degree above.The key parts of the tile and pressure roller bearings Wafangdian produce high temperature bearings. ● Pressure roller ¢ 284mm,surface grinding and chrome-plated;cylinder control and remove up and down, 45 carbon steel materials, quenching (with cushioning devices). Regular Technical Parameters: ● Effective width: 1400-1800mm ● Operation direction: left or right(determined in accordance with customer plant) ● Design speed: 100m/min ● Temperature range: 200—260℃ ● Corrugated flute:(UV type or UVV type) Roller Diameters Parameters: ● Diameter of corrugated roller: ¢280mm ● Diameter of pressure roller: ¢284mm ● Diameter of glue roller: ¢216mm ● Diameter of preheat roller: ¢320mm
Two Layer Single Facer Corrugated Production Line Solution for Cardboard Box Making 3

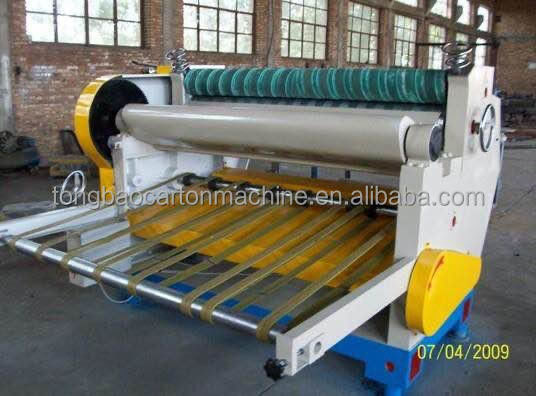

Characteristics: Single cutter can do single corrugated cardboard vertically and horizontally cutting, it has change order fast and hig cutting precision, working speed fast etc. make litle waster,when changed the order,it suit for the top grade colour printing machine. This machine adopt PLC touch screen to design,through it operator motor can know all the production status, adopt variable frequency motor to adjust the speed,servo control make the cutting length more exactly, making the cutting precision perfectly,(error±1,5mm)mechanical behavior will more fine.
Packing & Delivery
Two Layer Single Facer Corrugated Production Line Solution for Cardboard Box Making 4
Company Profile
Two Layer Single Facer Corrugated Production Line Solution for Cardboard Box Making 5
Our corporation specializes in the development and production of cardboard machinery in Northern China. There are 280 employees in our corporation now and 68 staff members specialize in scientific research and technology. With over 25 years of development, we persist in scientific innovation, import, digesting and absorbing new technology of the domestic and overseas markets incessantly. We have accumulated abundant experience of cardboard machinery design, development and production, and have established a scientific supervising system and a perfect inspection method. Now we are the key & leading enterprise in the cardboard machinery production field in Northern China. We consider great importance of the research and development of new products. We sincerely invite many experts of colleges and institutes every year to make technical directions, so we have great technical strength as our supporter, absorbing the new arts and techniques of the domestic and overseas markets and making our cardboard machinery advanced step by step. Our corporation is located in Dongguang county, Cangzhou city, with Jing-Hu railway, No.104 National Highway (Jingfu highway) and Jing-Hang Great Canal in the west, and Jing-Hu Freeway and a speed-railway in the east. The geographic condition is fine. The transportation is convenient. We warmly welcome guests and friends to come and visit our factory. Our products are sold to about 20 provinces, cities and municipalities of our country and are exported to African and European countries. The quality of our products is reliable; the design of the machines is novel and beautiful. Our goods feature high quality and longevity, enjoying a high reputation among worldwide customers.
Exhibition
Two Layer Single Facer Corrugated Production Line Solution for Cardboard Box Making 6
FAQ
1. who are we?
We are based in Hebei, China, start from 2004,sell to Domestic Market(00.00%),South Asia(00.00%),Western Europe(00.00%),Mid East(00.00%),Africa(00.00%),Southeast Asia(00.00%),South America(00.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Carton Printing Machine,Die cutting machine,Corrugated production line,Carton machine,corrugated gluer machine

4. why should you buy from us not from other suppliers?
We are professional in carton and corrugated paperboard making machine more than 25 years.Our machine are well apprised by mass clients for many years by good quality, novel exterior appearance, durable, long time and lifelong following service.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
