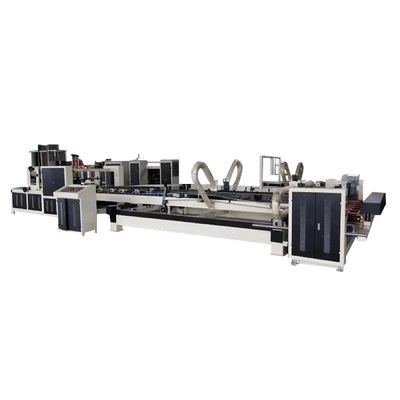

Electric Full Automatic Corrugated Paper Stapler Stitching Gluer Folding Gluing Machine

Electric Full Automatic Corrugated Paper Stapler Stitching Gluer Folding Gluing Machine
Electric Full Automatic Corrugated Paper Stapler Stitching Gluer Folding Gluing Machine Electric Full Automatic Corrugated Paper Stapler Stitching Gluer Folding Gluing Machine Electric Full Automatic Corrugated Paper Stapler Stitching Gluer Folding Gluing Machine Electric Full Automatic Corrugated Paper Stapler Stitching Gluer Folding Gluing Machine Electric Full Automatic Corrugated Paper Stapler Stitching Gluer Folding Gluing Machine Electric Full Automatic Corrugated Paper Stapler Stitching Gluer Folding Gluing Machine

Large Image :  Electric Full Automatic Corrugated Paper Stapler Stitching Gluer Folding Gluing Machine

Product Details:
Place of Origin: Hebei, China
Brand Name: TB
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $26,500.00/sets >=1 sets
Packaging Details: All the machine wrapped with plastic and fasten tightly iron wire into the container.
Supply Ability: 1 Set/Sets per Month

Electric Full Automatic Corrugated Paper Stapler Stitching Gluer Folding Gluing Machine

Description
Type: Gluing Machine Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Advertising Company, Carton Pack, Corrugated Pack, Corrugated Box, Packaging
Showroom Location: Egypt, Turkey, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Video Outgoing-inspection: Provided
Machinery Test Report: Provided Warranty Of Core Components: 1 Year
Core Components: PLC, Engine Condition: New
Application: Corrugated Carton Box Packaging Type: Cartons
Packaging Material: Plastic Automatic Grade: Automatic
Driven Type: Electric Voltage: 380V
Weight: 8000 KG Warranty: 1 Year
Key Selling Points: High-accuracy After-sales Service Provided: Engineers Available To Service Machinery Overseas
Name: Folder&gluer Speed: 60-150 Sheets/min
Function: Paper Cardboard Box Gluing Machine Color: Customer Required HOT MELT Machine
Feeding Way: Automatic Feeding Marketing Type: Hot Product 2023
Port: Tianjin Port

Product Description
Electric Full Automatic Corrugated Paper Stapler Stitching Gluer Folding Gluing Machine 0
Electric Full Automatic Corrugated Paper Stapler Stitching Gluer Folding Gluing Machine 1
Electric Full Automatic Corrugated Paper Stapler Stitching Gluer Folding Gluing Machine 2
Electric Full Automatic Corrugated Paper Stapler Stitching Gluer Folding Gluing Machine 3
Electric Full Automatic Corrugated Paper Stapler Stitching Gluer Folding Gluing Machine 4
Electric Full Automatic Corrugated Paper Stapler Stitching Gluer Folding Gluing Machine 5
Electric Full Automatic Corrugated Paper Stapler Stitching Gluer Folding Gluing Machine 6

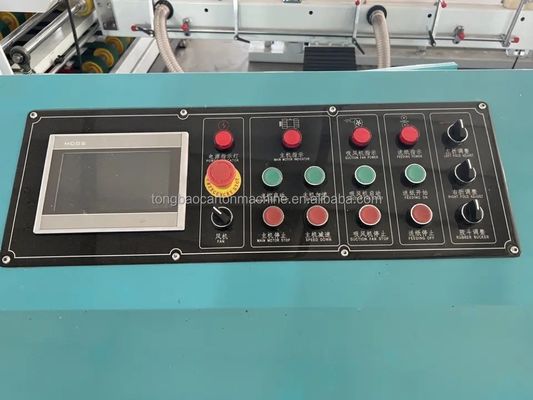

FUNCTION The fully automatic gluing stitching all-in-one machine is composed of a paper feeding part, a folding part, a nail box part, a correction part and a counting output part. It adopts PLC computer control, one-key adjustment of input data, order storage, and easy operation. The sticky nails of the main machine are separated up and down, one-button conversion, left and right electric traverse. Nailing and sticking independent power operation, convenient, quick and efficient adjustment.

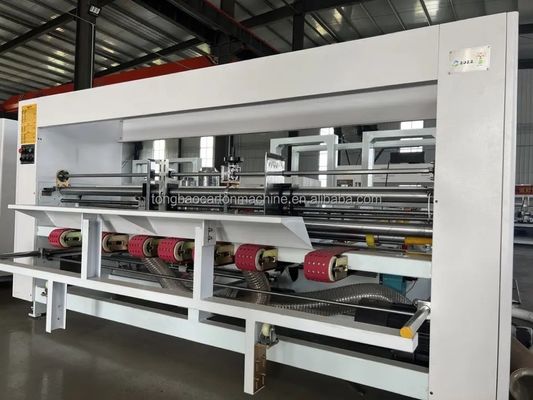

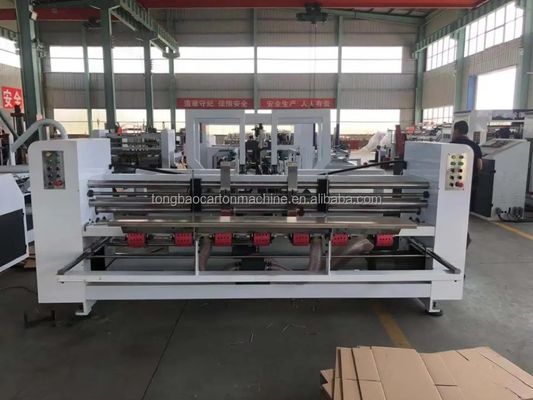

Feeding The wallboard is welded with steel plate. The transmission shaft is welded with seamless steel pipe, the pipe wall thickness is 20mm, the shaft surface is plated with hard chromium, and the bearing is made in WAGANGDIAN, Harbin. High pressure fan is used to feed the paperboard to ensure stable paper feeding. Each wear-resistant air suction belt can control the air volume separately to ensure the smooth feeding of paperboard. Drive synchronous toothed belt for paper feeding and smooth operation.

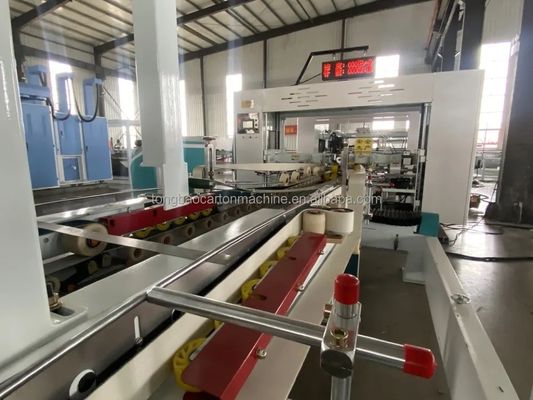

Folding The folding part adopts two kinds of pressing: pre pressing wheel and forming wheel, and then re strengthens the paperboard pressing line on the original pressing line. The position is accurate, the paperboard is not broken, the folding is beautiful, and the flat belt is pressed, folded and the synchronous belt is used to transport the finished products smoothly.

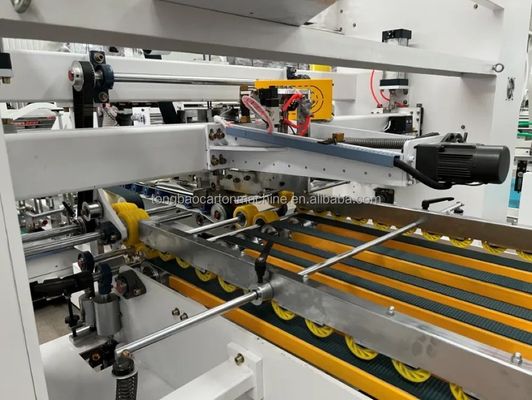

Stitching The servo motor of the nail box is independently controlled, with automatic paper feeding, automatic nailing and automatic counting. The machine head is made of special material, which is wear-resistant and stable with low noise. The head servo motor is directly driven with high speed and accurate nail distance. Large plate nail line reduces wire change time and improves work efficiency.
Correction unit The bearing eccentricity correction (with differential correction) makes the paperboard folding beautiful, and the size of the correction part can be adjusted horizontally. Counting output unit Finished cartons are stacked and output, so that cartons can be output, and packaged smoothly.
Specification
Type
LC-2600
Max.Dimension (a + b) X2 (mm)
2600mm
Min.Dimension (a + b) X2 (mm)
720mm
Max.Dimension (C + D + C) X2 (mm)
1000mm
Min.Dimension (C + D + C) X2 (mm)
300mm
Max. Width B (mm)
550mm
Min. Width B (mm)
160mm
Max. Length A (mm)
750mm
Total Power (Kw)
23kw
Min. Length A (mm)
160mm
Nail Tongue Width E (mm)
35-40mm
Machine Speed(Nail/Min)
800nails/min
Number of nails
1-99
Nail distance (mm)
30-80mm
Nail box speed
60m/min
110-130m/min
60m/min
Packing & Delivery
