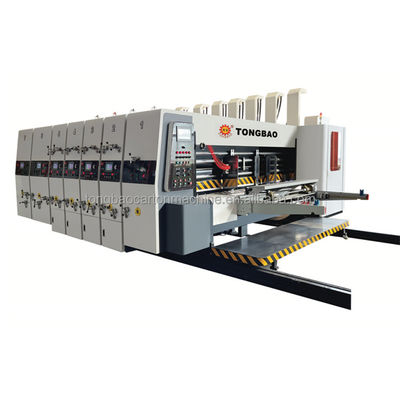

11000 PCS/H Carton Box Flexo Printing Slotting Rotary Die Cutting Vibration Stacker Machine

Large Image : 11000 PCS/H Carton Box Flexo Printing Slotting Rotary Die Cutting Vibration Stacker Machine

Product Details:

Brand Name:	TB
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$70,000.00/sets >=1 sets
Packaging Details:	All the machine wrapped with plastic and fasten tightly iron wire into the container.
Supply Ability:	20 Set/Sets per Month

Contact Now

11000 PCS/H Carton Box Flexo Printing Slotting Rotary Die Cutting Vibration Stacker Machine

Description

Condition:	New	Warranty:	1 Year, 12 Months
Applicable Industries:	Manufacturing Plant, Packaging Machinery, Carton Pack, Packaging, Corrugated Pack	Showroom Location:	Egypt, Turkey, Viet Nam, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrg
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product 2019	Warranty Of Core Components:	1 Year
Core Components:	Gear, Engine, PLC	Type:	Printing Machine
Key Selling Points:	High-accuracy	Weight (KG):	40000 KG
Application:	Corrugated Carton Box	Voltage:	220V/380V/440V
Automatic Grade:	Automatic	After-sales Service Provided:	Engineer Service Oveaseas
Place Of Origin:	Dongguang Cangzhou Hebei China	Plate Type:	Flexo Plate
SPEED:	11000 PCS/H	Brand Name:	TONGBAO

Product Description

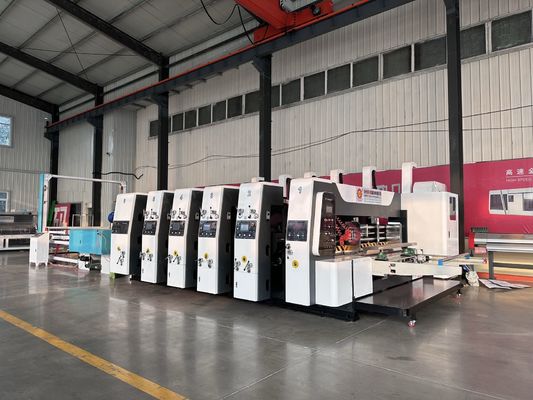

Product show

Lead edge feeding unit

1.Adopt four-row leading edge paper feeding system to improve the accuracy and smoothness of paper feeding. 2.dopt frequency conversion to adjust the air volume, increase the stability and accuracy of thin cardboard and warped cardboard transmission.

3.Left and right side baffles, electric guide mechanism, stable and precise displacement. 4.Clutch warning, double pneumatic locking, safe and reliable 5.The upper paper feed roller (roller diameter is 136mm) is seamless steel pipe, wrapped with 6.The down paper feeding roller(Ф136mm) is the seamless steel tube , ginning and hard chromium plating ,balance correction . 7.The gap between the paper feeding roller and the worm wheel are adjusted by the dial, the adjustment range is 0-12mm, and the structure of the cross slider is adopted, and the transmission gear will always maintain the correct meshing state when adjusting. 8.Equipped with high-quality brushes and a dust suction device, it can remove a large amount of impurities on the printing surface of the cardboard and improve the printing quality

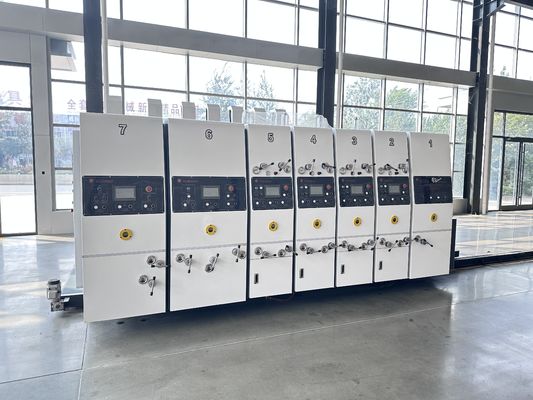

PRINTING UNIT

1.Steel material, surface grinding and hard chrome plating. 2.Balance correction, stable operation. 3.Full plating slot is suitable for 10 mm plate . 4.Loading and unloading the printing plate, pedal switch control the forward and backward. 5.Diameter of the roller is Ф405mm（including printing plate). 6.Cooperate with the paper feeding pneumatic lifting screen roller to prevent the ink in the screen roller hole from drying up when the printing plate is repeatedly inked or shut down for a short time. 7.The middle and high of the rubber roller grinding, good transferring ink effect. 8.The printing phasing adopts PLC and electrical digital 360 degree adjustment ( no matter the machine is working or stopping).Phase motor USES worm gear and worm self-locking type motor power 0.37KW. 9.It adopts pneumatic diagram pump for inking, stable and easy to operate and maintain. 10.Steel ink fountain, automatic inking and circulating cleaning.

Slotting Unit

1.Creasing wheel with PU Plated for good creasing and avoiding paper crack 2.Creasing rollers diameter:110mm,plated with rigid chrome and grinded surface,treated by balance rectification. 3.Slotting holder rollers diameter:176mm,plated with rigid chrome and grinded surface,treated by balance rectification. 4.Cast steel slotting guide plates makes slotting precise and never damage the slotting knife. 5.Crsi Slotting knives 6.Slotting holder rollers gap adjusted by electric and computer control

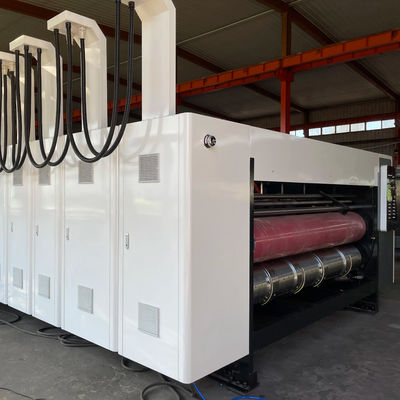

DIE-CUTTING UNIT

1.The pad roller adopts a mechanical cam groove movement (40mm) structure. Can move 40mm left and right. 2.The gap between the rubber pad roller and the die roller is controlled electrically, the paper feeding stops, the soft roller rises automatically, and returns to the working position when working. 3.Adopt the speed difference compensation device, no matter how the diameter of the rubber pad changes, the linear speed of the rubber pad will automatically track and compensate without manual adjustment. 4.The worn rubber pad roller can be repaired to keep the surface of the rubber pad flat. 5.Optional slotting attachment.

Specification

Recommend Products

Recommend products

Product packaging

company information

Our corporation specializes in the development and production of cardboard machinery in Northern China. There are 280 employees in our corporation now and 68 staff members specialize in scientific research and technology. With over 25 years of development, we persist in scientific innovation, import, digesting and absorbing new technology of the domestic and overseas markets incessantly. We have accumulated abundant experience of cardboard machinery design, development and production, and have established a scientific supervising system and a perfect inspection method. Now we are the key & leading enterprise in the cardboard machinery production field in Northern China. We consider great importance of the research and development of new products. We sincerely invite many experts of colleges and institutes every year to make technical directions, so we have great technical strength as our supporter, absorbing the new arts and techniques of the domestic and overseas markets and making our cardboard machinery advanced step by step. Our corporation is located in Dongguang county, Cangzhou city, with Jing-Hu railway, No.104 National Highway (Jingfu highway) and Jing-Hang Great Canal in the west, and Jing-Hu Freeway and a speed-railway in the east. The geographic condition is fine. The transportation is convenient. We warmly welcome guests and friends to come and visit our factory. Our products are sold to about 20 provinces, cities and municipalities of our country and are exported to African and European countries. The quality of our products is reliable; the design of the machines is novel and beautiful. Our goods feature high quality and longevity, enjoying a high reputation among worldwide customers.

Exhibition

FAQ

1. who are we?
We are based in Hebei, China, start from 2004,sell to Domestic Market(00.00%),South Asia(00.00%),Western Europe(00.00%),Mid East(00.00%),Africa(00.00%),Southeast Asia(00.00%),South America(00.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Carton Printing Machine,Die cutting machine,Corrugated production line,Carton machine,corrugated gluer machine

4. why should you buy from us not from other suppliers?
We are professional in carton and corrugated paperboard making machine more than 25 years.Our machine are well apprised by mass clients for many years by good quality, novel exterior appearance, durable, long time and lifelong following service.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
